Name: 220V Electronic Salt Fog Corrosion Testing Machine Wave Style Salt Spray Aging Chamber 1 Year Warranty Salt Mist Resistance
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: YY120-480L
Price: 2000 USD
Availability: InStock

En casa. > productos > Cámara de prueba ambiental >

220V Electronic Salt Fog Corrosion Testing Machine Wave Style Salt Spray Aging Chamber 1 Year Warranty Salt Mist Resistance

220V electronic salt fog corrosion tester

wave style salt spray aging chamber

salt mist resistance test machine

Lugar de origen:

Porcelana

Nombre de la marca:

YUYANG

Certificación:

Número de modelo:

YY120-480L

Contacta con nosotros

Pida una cita

Detalles del producto

Tamaño de la sala de prueba (AnxLxAl)(mm):

1200*1000*500

Tamaño de la máquina (AnxLxAl)(mm):

1410*880*1280

Temperatura del laboratorio:

NSS.ACSS 35 °C ± 1 °C / CASS 50 °C ± 1 °C

Temperatura del saturador:

NSS.ACSS 35 °C ± 1 °C / CASS 50 °C ± 1 °C

Humedad:

85% ~ 98% de Hg

Rango de temperatura:

± 0.5ºC

Disminución del sal:

1.0 ~ 2.0 ml/80 cm2/h

Fuente de alimentación:

AC220V 50Hz

Resaltar:

220V electronic salt fog corrosion tester

wave style salt spray aging chamber

salt mist resistance test machine

Condiciones de pago y envío

Cantidad de orden mínima

1 juego

Precio

$2000

Detalles de empaquetado

caja de madera contrachapada

Tiempo de entrega

5-10 días laborables

Condiciones de pago

T/T, carta de crédito, Western Union

Capacidad de la fuente

200 juegos por mes

Productos relacionados

El video

Large Capacity Salt Spray Corrosion Test Box for Various Material Testing

Obtenga el mejor precio

El video

Titanium Alloy Salt Fog Test Chamber for Hardware and Chemical Components

Obtenga el mejor precio

El video

Industrial Electronic Power Continuous Salt Spray Corrosion Tester 220V Saline Spray for Test Machine with 1 Year Warranty

Obtenga el mejor precio

El video

220V Electronic Salt Fog Corrosion Testing Machine Wave Style Salt Spray Aging Chamber 1 Year Warranty Salt Mist Resistance

Obtenga el mejor precio

Contacta con nosotros

8613265296009

sales13@yuyangtest.com

86-769-26622869

Contacta ahora

Descripción del producto

220V Electronic Salt Fog Corrosion Testing Machine

Wave Style Salt Spray Aging Chamber with 1 Year Warranty for comprehensive salt mist resistance testing.

Product Overview

This salt spray test chamber is engineered to evaluate corrosion resistance of surface-treated materials including paints, electroplating, organic and inorganic coatings, anode processing, and anti-rust oils after anti-corrosive treatment.

Construction Materials

Laboratory chamber constructed from 5mm thick PVC sheet, capable of withstanding temperatures up to 80°C
Laboratory closure features 6mm thick high-impact acrylic sheet
Reagent supplementary bottles include water level perspective windows with hidden viewing areas for easy cleaning and durability
Saturated air barrel manufactured from SUS #304 stainless steel for optimal insulation and pressure resistance

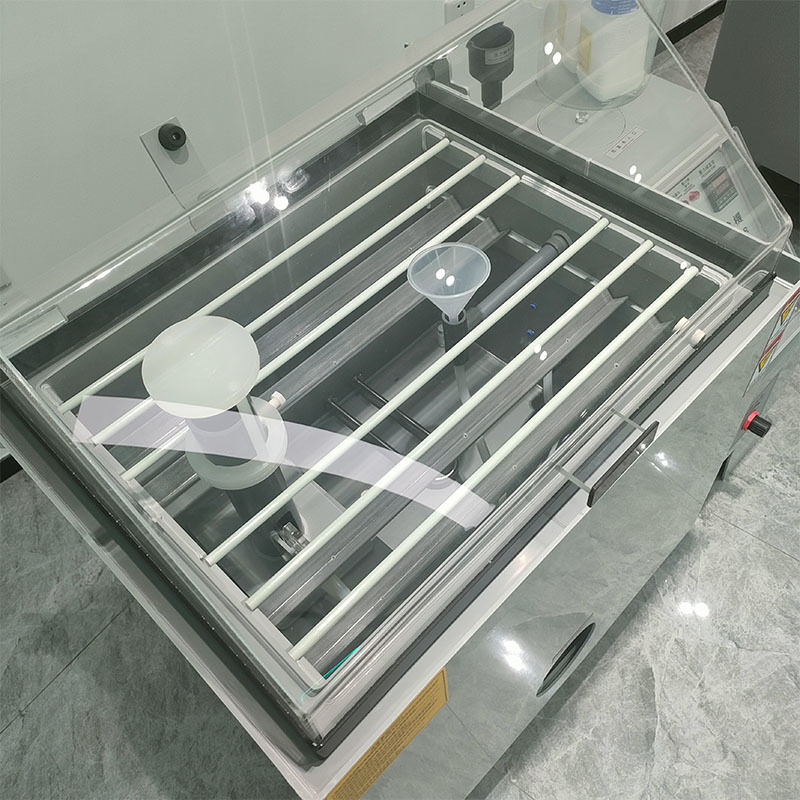

Laboratory basket features flat indexing frame with adjustable angles, ensuring uniform mist distribution across test specimens

Compliance Standards

GB/T5170.8, GB/T2423.17, ISO-3768 3769 3770, ASTM-B117 B268, JIS-D0201, H8502, H8610, K5400 Z2371

Technical Specifications

Model	YY120-480L
Test Room Size (W×L×H)	1200 × 1000 × 500 mm
Machine Size (W×L×H)	1410 × 880 × 1280 mm
Laboratory Temperature	NSS/ACSS: 35°C ± 1°C / CASS: 50°C ± 1°C
Saturator Temperature	NSS/ACSS: 35°C ± 1°C / CASS: 50°C ± 1°C
Humidity	85% ~ 98% RH
Temperature Range	± 0.5°C
Salt Spray Settling Rate	1.0 ~ 2.0 ml/80cm²/h
Power Supply	AC220V 50HZ
