Induction Heating Welding Machines Induction Heating Machine

Induction Heating Welding Machines Induction Heating Machine

induction heating welding machine

electrical test set with induction heating

welding machine with induction heating

Lugar de origen:

Porcelana

Nombre de la marca:

YUYANG

Certificación:

CE

Número de modelo:

En el caso de los vehículos de motor

Contacta con nosotros
Pida una cita
Detalles del producto
Potencia fluctuante máxima:
40kW
poder de trabajo:
340V-430V
Corriente de entrada máxima:
41A
Potencia de salida:
40kW
Frecuencia fluctuante:
30-80khz
La velocidad de flujo del agua de enfriamiento:
0.08-0.16Mpa 7,6L/min.
punto de protección de la temperatura del agua:
40c
Tamaño del producto:
620x250x530mm
Peso neto:
34,5 kg
Resaltar:

induction heating welding machine

,

electrical test set with induction heating

,

welding machine with induction heating

Condiciones de pago y envío
Cantidad de orden mínima
1 juego
Precio
$2000
Detalles de empaquetado
caja de madera contrachapada
Tiempo de entrega
5-10 días laborables
Condiciones de pago
T/T, carta de crédito, Western Union
Capacidad de la fuente
200 juegos por mes
Descripción del producto

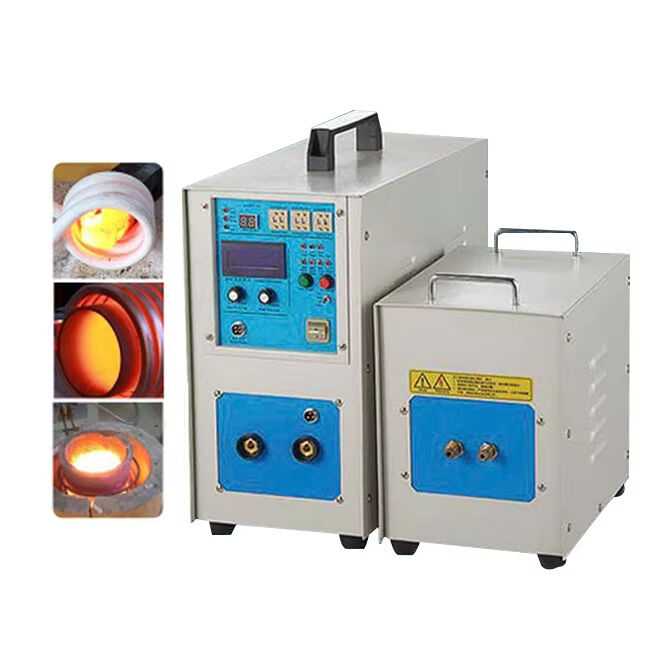

Induction Heating Welding Machines
Advanced induction heating equipment designed for efficient metal processing with superior energy savings and environmental performance.
Key Characteristics
  • IGBT inverting device with automatic frequency tracking
  • High-frequency operation with 70-80% energy savings compared to traditional heating methods
  • Secure voltage operation for enhanced safety
  • Manual and automatic regulation with comprehensive protection systems
  • Environmentally friendly operation with no open flame, noise, or pollution
  • Versatile applications including brazing, welding, forging, and heat treatment
Advanced Features
Utilizes state-of-the-art electrical components and innovative techniques for rapid, localized metal heating. Capable of penetrating non-metallic materials to heat metals directly without physical contact, providing safe, economical, and pollution-free technical solutions.
Product Advantages
  • Portable design: 80% space savings and 75% weight reduction compared to traditional transformers
  • Advanced amorphous magnetic core technology for superior heating of complex metal shapes
  • High efficiency with rapid 8-second heating cycles and stable magnetic field output
  • Monolithic shell design resistant to weak acids and alkalis
  • Ideal for air conditioning, refrigeration, and complex welding applications
Technical Specifications
Model YY-40AB (Three Phase)
Work Power 340V-430V
Maximum Input Current 41A
Output Power 40KW
Fluctuating Frequency 30-80KHZ
Cooling Water Flow 0.08-0.16Mpa 7.6L/Min
Overheat Protection 40°C
Main Unit Dimensions 620×250×530mm
Transformer Dimensions 480×260×410mm
Main Unit Net Weight 34.5kg
Transformer Net Weight 31.5kg
Applications
  • Metal brazing: copper, brass, tungsten steel, stainless steel, iron, aluminum
  • Glasses welding, fishing tool welding, hardware appliances welding
  • Carbide saw and blade welding, saw-tooth welding
  • Jewelry and watch manufacturing
  • Electronic industry: motor rotor hot-cooperation, electrode soldering
  • Medical implants, bulb electrode manufacturing
  • Sports equipment: golf heads, band accessories
  • Communication equipment: copper coaxial cable connector soldering
Induction Heating Welding Machines Induction Heating Machine 0 Induction Heating Welding Machines Induction Heating Machine 1
Company Information
Location: Guangdong, China
Established: 2018
Market Reach: Global distribution including South Asia, Eastern Asia, North America, Europe, and Oceania
Team Size: 11-50 professionals
Quality Assurance
  • Pre-production sampling before mass production
  • Final inspection before shipment
Product Range
Fire Testing Equipment, Environmental Test Chambers, Textile Testing Equipment, Toys Testing Equipment, Wire and Cable Test Machines
Why Choose Us
We are a high-tech enterprise specializing in developing and manufacturing comprehensive testing equipment with advanced technical expertise and manufacturing capabilities.
Service Details
Delivery Terms: FOB, CFR, CIF, EXW
Payment Methods: T/T, L/C, D/P D/A, Credit Card, Western Union, Cash
Accepted Currencies: USD, EUR, JPY, AUD, HKD, GBP, CNY
Languages: English, Chinese
