Name: Constant Temperature and Humidity Testing Equipment Stability Environmental for Test Chamber
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: En el caso de las empresas de seguros
Price: 11957 USD
Availability: InStock

En casa. > productos > Cámara de prueba ambiental >

Constant Temperature and Humidity Testing Equipment Stability Environmental for Test Chamber

Constant Temperature Test Chamber

Humidity Stability Testing Equipment

Environmental Test Chamber with Warranty

Lugar de origen:

Porcelana

Nombre de la marca:

YUYANG

Certificación:

Número de modelo:

En el caso de las empresas de seguros

Contacta con nosotros

Pida una cita

Constant Temperature and Humidity Testing Equipment Stability Environmental for Test Chamber

Detalles del producto

Fuerza:

220V

Rango de temperatura:

-40ºC-+150ºC

Rango de humedad:

20%~98% HR

Tiempo de enfriamiento:

1°C/min (velocidad de enfriamiento promedio)

peso (kg):

120 kg

calor:

Calentar aproximadamente 3,0 °C/min.

Resaltar:

Constant Temperature Test Chamber

Humidity Stability Testing Equipment

Environmental Test Chamber with Warranty

Condiciones de pago y envío

Cantidad de orden mínima

1 Uds.

Precio

negotiable

Detalles de empaquetado

CAJA DE MADERA

Tiempo de entrega

7-30 días

Condiciones de pago

LC, D/A, D/P, T/T, Western Union, MoneyGram

Capacidad de la fuente

5 PC por mes

Productos relacionados

Salt Spray Cyclic Corrosion Test Chamber Test Equipment for Electronics

Obtenga el mejor precio

Constant Temperature and Humidity Testing Equipment Stability Environmental for Test Chamber

Obtenga el mejor precio

Laboratory Salt Spray Test Chamber for Corrosion Test Environmental Climate Test Chamber

Obtenga el mejor precio

El video

Clima ambiental para la cámara de ensayo con temperatura y humedad constantes para el equipo de ensayo

Obtenga el mejor precio

Contacta con nosotros

Contacta ahora

Descripción del producto

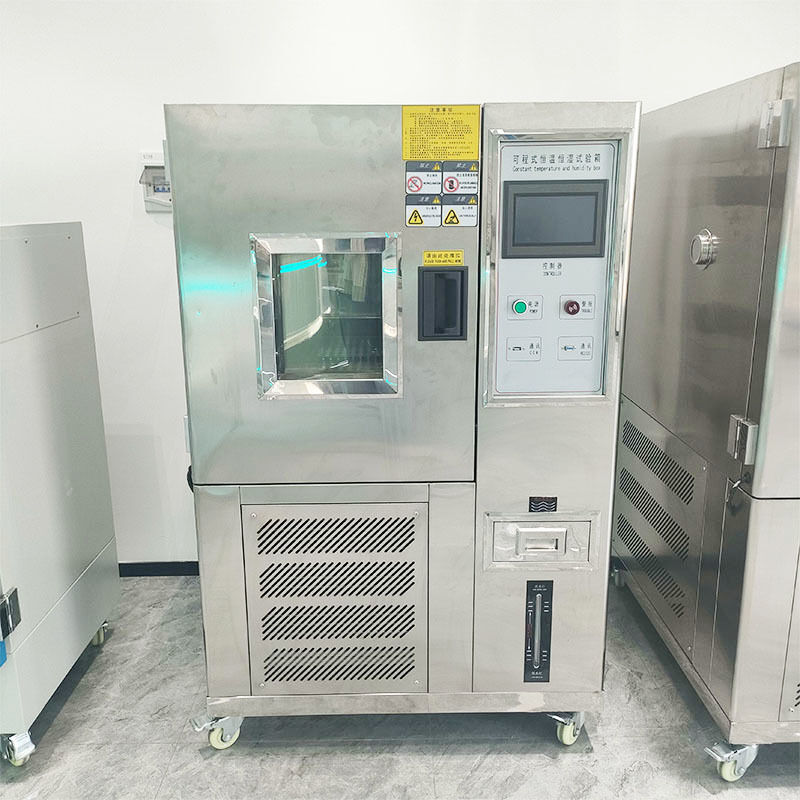

Constant Temperature and Humidity Testing Equipment

Professional environmental test chamber designed for stability testing under controlled temperature and humidity conditions.

Applications

This equipment tests material resistance to heat, cold, dry, and humid conditions. Suitable for electronics, electrical appliances, communications, instrumentation, vehicles, plastic products, metals, food, chemicals, building materials, aerospace products, and more.

Key Features

Precise control from 5% to 98% R.H. ±0.5% and -20°C to 150°C ±0.5°C
Widely used for heat, cold, dry, and humidity resistance testing
Ideal for conditioning samples prior to testing
Designed for quality control across multiple industries including electronics, electrical equipment, automotive, metals, foodstuffs, chemicals, and building materials

Technical Specifications

Model	YYE009-50L
Inner Size (W×H×D)	35×36×40 cm
External Size (W×H×D)	48×61×110 cm
Temperature Range	-20°C to +150°C
Humidity Range	20% to 98% R.H.
Temperature Accuracy/Uniformity	0.1°C / ±2.0°C
Temperature Fluctuation	±0.5°C
Humidity Accuracy/Control Accuracy	±0.1% / ±2.5%
Heating/Cooling Rate	Heating: ~3.0°C/min; Cooling: ~1.0°C/min
Chamber Materials	Inner: SUS#304 Stainless Steel; Outer: Advanced cold plate nano paint
Insulation Materials	High-temperature resistant, high-density foam insulation
Cooling System	Air cooling/single segment compressor (-20°C)
Power Supply	AC220V 50/60Hz & 1
Weight	120 kg

Standard Components

Watching window
50mm testing hole
PL internal bulbs
Wet and dry bulb gauze
Partition plate
Castors ×4
Foot cups ×4

Safety Protection

Fuse switch
Compressor overload switch
Refrigerant high and low pressure protection switch
Super humidity over-temperature protection switch
Fuse protection
Failure warning system

About YUYANG Instrument

DONGGUAN YUYANG INSTRUMENT CO., LTD. is a high-tech enterprise specializing in the R&D and manufacturing of testing equipment including fire testing equipment, environmental test chambers, textile testing equipment, and more. With decades of experience, YUYANG maintains a leading position in providing high-quality, cost-effective testing solutions that comply with international standards including ISO, ASTM, DIN, EN, GB, BS, JIS, ANSI, UL, and IEC.

Our products serve numerous sectors including scientific research institutions, universities, inspection authorities, automotive parts, electronics, electrical appliances, lithium batteries, plastics, telecommunications, aerospace, and textiles.
