High Precision Programmable Climate Test Chamber with SUS#304 Stainless Steel Construction

High Precision Programmable Climate Test Chamber with SUS#304 Stainless Steel Construction

High Precision Climate Test Chamber

Programmable Temperature and Humidity Test Chamber

SUS#304 Stainless Steel Environmental Test Chamber

Lugar de origen:

Porcelana

Nombre de la marca:

YUYANG

Certificación:

CE

Número de modelo:

En el caso de las empresas de seguros

Contacta con nosotros
Pida una cita
Detalles del producto
Resaltar:

High Precision Climate Test Chamber

,

Programmable Temperature and Humidity Test Chamber

,

SUS#304 Stainless Steel Environmental Test Chamber

Condiciones de pago y envío
Cantidad de orden mínima
1 juego
Precio
negotiable
Detalles de empaquetado
Caja de madera contrachapada
Tiempo de entrega
15-20 días laborables
Condiciones de pago
LC, T/T, Unión Occidental
Capacidad de la fuente
2 conjuntos por mes
Descripción del producto
High Precision Programmable Constant Temperature and Humidity Machine
Climate Chamber Room Control Climate Test Cabinet for precise environmental testing applications
Product Specifications
Item Name Temperature and humidity test chamber
Capacity (L) 80, 150, 225, 408, 500, 800, 1000L
Performance Specifications
Control Methods: Balanced temperature humidity control system (BTHC) PID intelligent adjust
Temperature Range: -70°C to 150°C
Humidity Range: 20% to 98% R.H.
Accuracy: ±1.0°C, ±2%RH / ±0.5°C, ±2%RH
Resolution: ±0.1°C, ±0.1%RH / ±1°C, ±3%RH
Heating Rate: ≤3°C/min
Cooling Rate: Average 1°C/min
Construction Materials
Internal Material: SUS#304 stainless steel
External Material: SUS#304 stainless steel or Antirust processing cold-rolled steel sheet (Spray)
Insulation Material: Superfine wool + polyurethane foam
Regulation System
Cooling Mode: Mechanical binary refrigeration way
Compressor: Closed compressor (French Tecumseh or German Copeland)
Refrigerant: R23/R404A
Condensing Way: Air-cooling and Water-cooling
Humidifier: Stainless steel humidifying tube
Airflow Way: Broadband-type forced air circulation
Controller System
Operate Interfaces: Korea TEMI 880 LCD touch screen
Memory capacity: 120 groups, each program 100 segment
Input: PT100 or T thermocouple
Communicate Interface: RS-232
Subsidiary Functions
  • Upper and lower alarm
  • Self diagnosis
  • Alarm display (fault cause)
  • Time sequence protection (Automatic turn on or turn off)
Water Supply System
Water supply: Circulating water supply
Water tank: Built-in hand type (30Kg capacity)
Water quality: resistance >500Ω.m
Standard Configuration
  • One observe window (Double hollow toughened glass)
  • One test pattern D50mm (on the left)
  • 2 layers sample frame
  • One floodlight (fluorescent lamp)
  • One water feeding tank
Safety Devices
Comprehensive safety protection including: Power leakage protection; Dry heating protection; Water protection; Over-temperature protection switch; Temperature deviation alarm; Compressor Overpressure; overload; Water shortage; Phrase shortage, and more.
Power Supply
220VAC ±10% 50/60Hz & 380VAC ±10% 50/60Hz

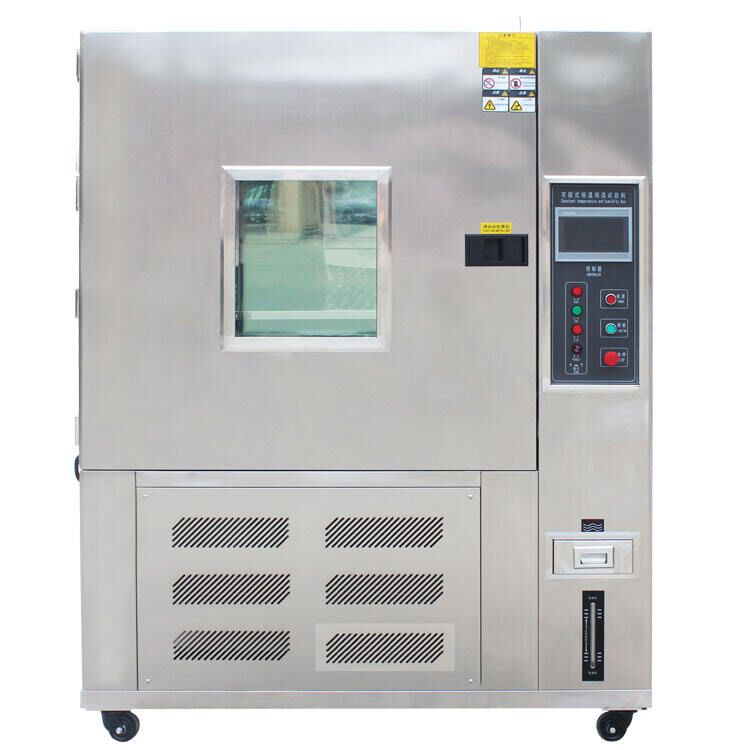

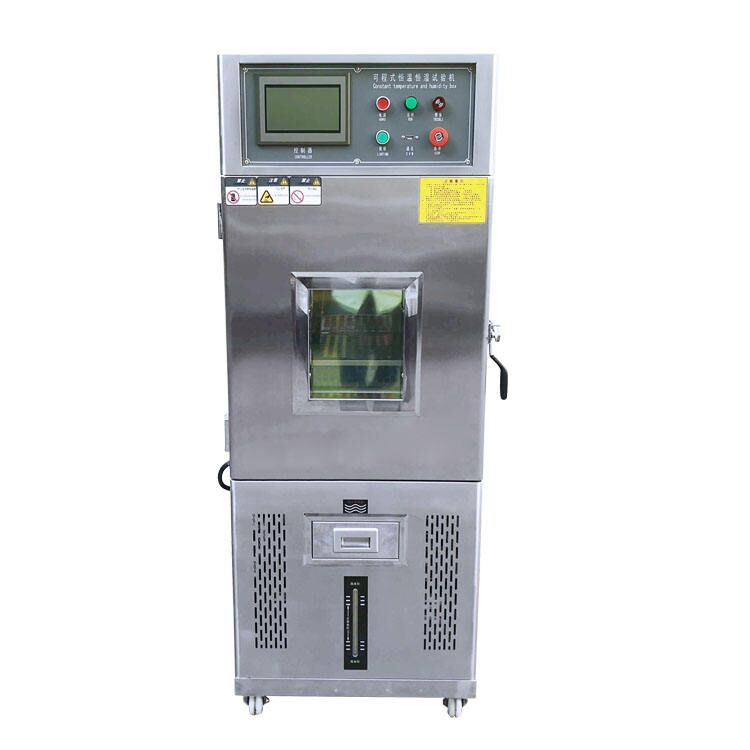

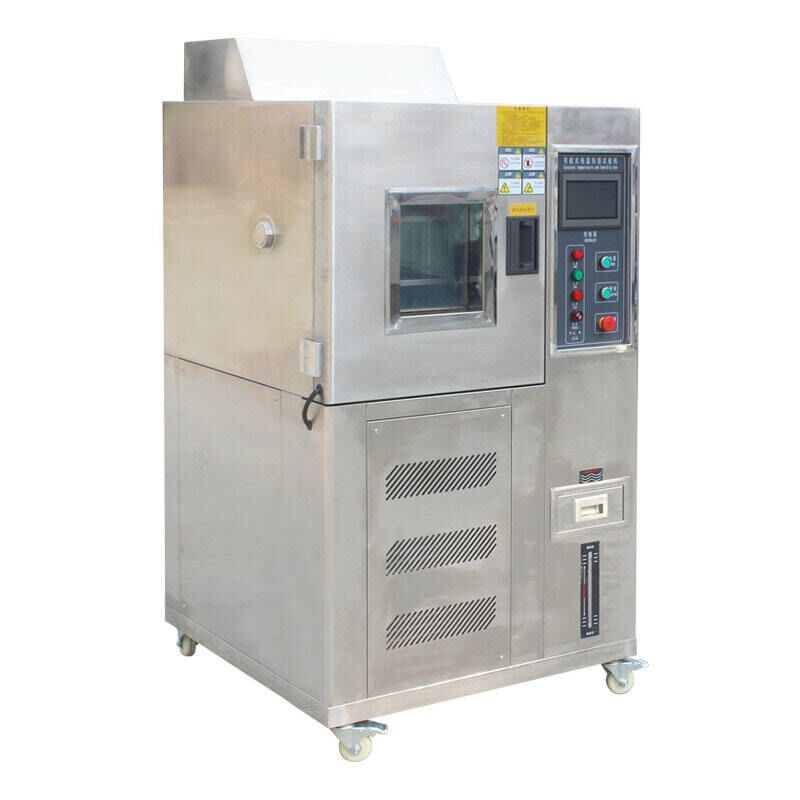

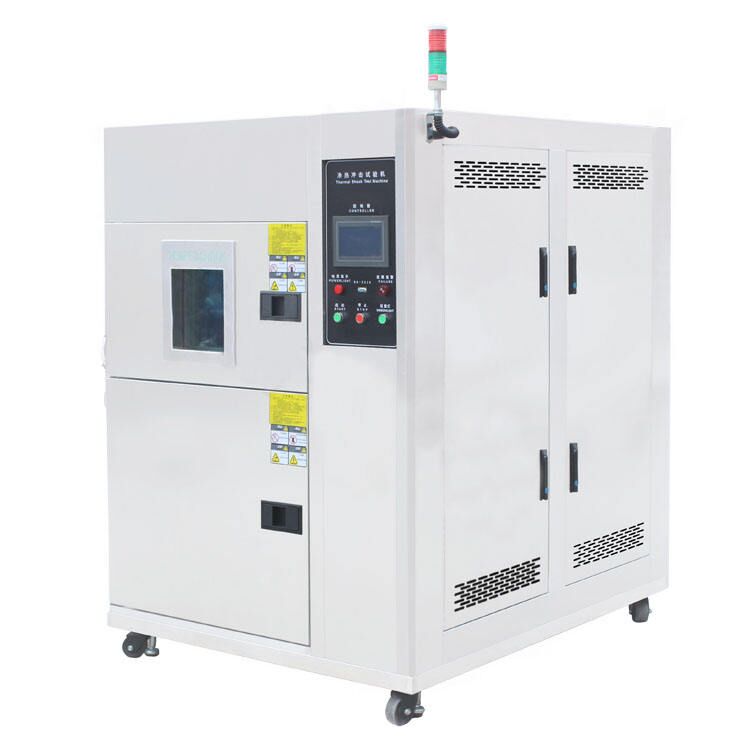

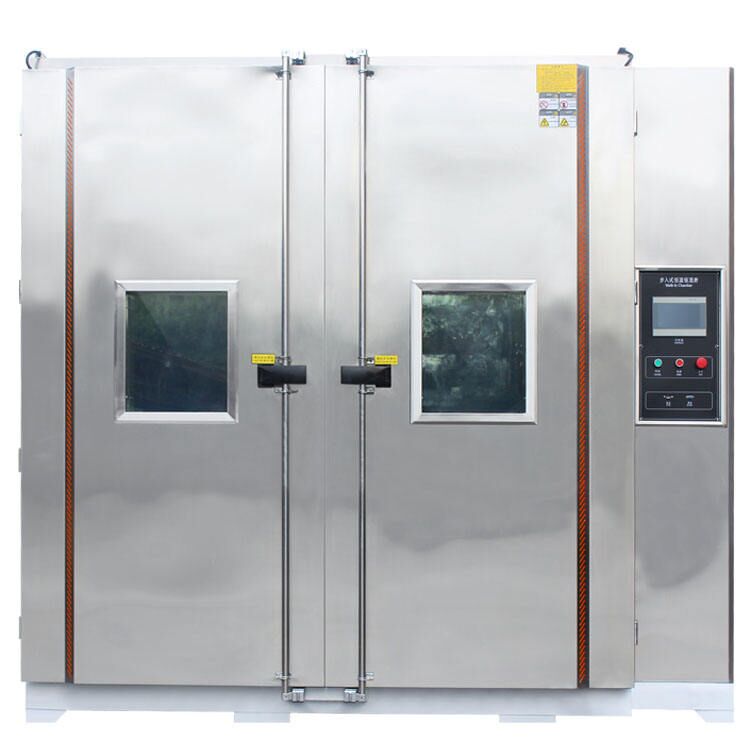

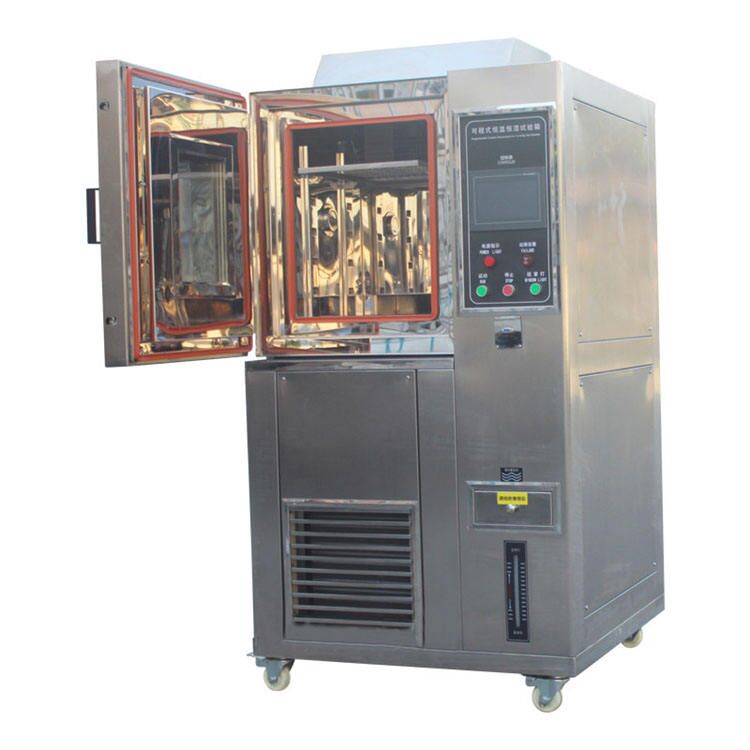

Product Images
High Precision Programmable Climate Test Chamber with SUS#304 Stainless Steel Construction 0 High Precision Programmable Climate Test Chamber with SUS#304 Stainless Steel Construction 1 High Precision Programmable Climate Test Chamber with SUS#304 Stainless Steel Construction 2 High Precision Programmable Climate Test Chamber with SUS#304 Stainless Steel Construction 3 High Precision Programmable Climate Test Chamber with SUS#304 Stainless Steel Construction 4 High Precision Programmable Climate Test Chamber with SUS#304 Stainless Steel Construction 5 High Precision Programmable Climate Test Chamber with SUS#304 Stainless Steel Construction 6
About DONGGUAN YUYANG INSTRUMENT CO., LTD
Located in Wanjiang District (Dongguan City, Guangdong Province, China), a famous historical town with prosperous industry and convenient transportation. We are a high-tech enterprise specialized in developing and manufacturing Fire Testing Equipment, Building Material Fire Tester, Wire and Cable Fire Tester, Environmental Test Chamber, Textile Testing Equipment, Toys Testing Equipment and more. Decades of research and development strengthen the leading edge of YUYANG in this field, establishing us as a crucial role in R&D of high quality, high-cost performance testing equipment. YUYANG's testing equipment are widely used in various fields: scientific institutions, colleges, inspection institutions, auto parts, electronics, electricals, lithium battery, LED, photoelectricity, mobile, plastic and rubber, display, telecommunication, chemical industry, aerospace, building material and product, wire and cable, toys, furniture, textile and fabric. All YUYANG testing equipment are designed according to international test standards, such as ISO, ASTM, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE, CSA, CEN and more.
DONGGUAN YUYANG INSTRUMENT CO., LTD looks forward to cooperating with customers worldwide. Contact us for product inquiries or custom orders.
