IEC 60331, BS 6387, EN 50200 Electric Cables Circuit Integrity Burn Test Apparatus Fire Shock Water Spray Test

IEC 60331 electric cable test apparatus

BS 6387 fire shock test equipment

EN 50200 circuit integrity burn tester

Lugar de origen:

Dongguan, China

Nombre de la marca:

YUYANG

Contacta con nosotros

Pida una cita

IEC 60331, BS 6387, EN 50200 Electric Cables Circuit Integrity Burn Test Apparatus Fire Shock Water Spray Test

Detalles del producto

Exactitud:

±1%

Fuerza:

500W

Clase de protección:

IP57

Voltaje:

110 V, 220 V

Voltaje de entrada:

0 ~ 1000V

Corriente de la avería:

Potencia máxima:

5000VA

Temperatura de la llama:

0 ~ 1100 grados

Longitud de la boquilla del quemador:

500 mm

Ancho de la boquilla del quemador:

15mm

Diámetro de agujeros:

1.32 mm

Distancia al centro de los agujeros:

3,2 mm

Diámetro de los anillos metálicos:

150mm

Diámetro de la sección transversal:

10 ± 2 mm

Rango del temporizador:

0 ~ 999min

Resaltar:

IEC 60331 electric cable test apparatus

BS 6387 fire shock test equipment

EN 50200 circuit integrity burn tester

Condiciones de pago y envío

Cantidad de orden mínima

Productos relacionados

Elongation Test Machine for Wire Rod Copper Material Cable and Wire Elongation Tester Wire Testing Machine

Obtenga el mejor precio

Wire Cable Bending Fatigue Testing Machine

Obtenga el mejor precio

220V Cable Flex for Test Equipment Plug Wire Line Bending Tester

Obtenga el mejor precio

High Frequency 15KW 25KW Spark Tester for Cable and Wire YUYANG Cable Testing Machine

Obtenga el mejor precio

Contacta con nosotros

+86-13825722581

jackson.sun@yuyangtest.com

86-769-26622869

Contacta ahora

Descripción del producto

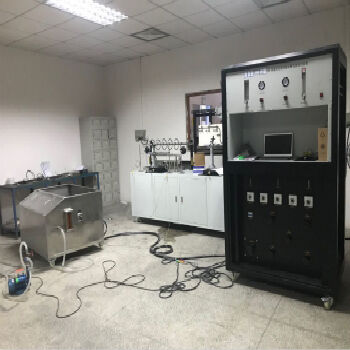

IEC 60331, BS 6387, EN 50200 Electric Cables Circuit Integrity Burn Test Apparatus

This fire-resistant cable testing apparatus evaluates circuit integrity under flame conditions, ensuring cables maintain safe operation during fire exposure. Designed for fire-resistant cables and optical cables, the system provides reliable testing according to international standards.

User Experience Benefits

Stainless steel construction provides excellent resistance to smoke and gas corrosion
Highly automated control system with automatic ignition, digital temperature and time displays for easy observation and recording
Stable and reliable performance for consistent test results

Compliance Standards

IEC 60331 - Tests for electric cables under fire conditions - Circuit Integrity
GB/T19216 - Test for electric or optical fibre cables under fire conditions - Circuit Integrity
BS 6387 - Test method for resistance to fire of cables required to maintain circuit integrity
EN 50200 - Method of test for resistance to fire of unprotected small cables for use in emergency circuits

Key Features

All fixtures constructed from durable stainless steel
Belt-type propane blowtorch with Venturi mixer, featuring 500mm length, 15mm width burner nozzle
Staggered three-row burning holes with 1.32mm diameter and 3.2mm center distance

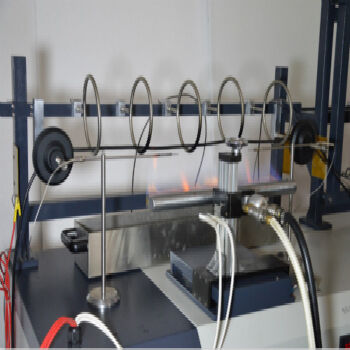

Specimen holder with clamping mechanism for secure sample fixation and longitudinal heat transfer
Cable samples supported by two metal rings with 150mm inner diameter and 300mm spacing
Optimal burner positioning: ≥200mm from burning bottom, ≥300mm from tank wall

Combustion System Specifications

Independent standard electrical control platform

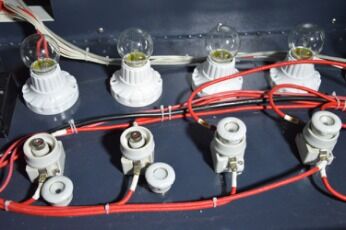

Intelligent detection system automatically alarms and extinguishes fire source upon sample short circuit
2A fuse current in experimental circuit
Adjustable sample power application: AC 100V ~ 1000V
Programmable fire duration with standard recommendation of 90 minutes

Technical Parameters

Voltage	AC 380V 3-phase, 50/60Hz, 30A
Input Voltage	0 ~ 1000V adjustable
Breakdown Current	2A
Maximum Power	5000VA
Timer	0 ~ 999 minutes
Flame Temperature	0 ~ 1100°C adjustable
Test Load Current	0.25A adjustable
