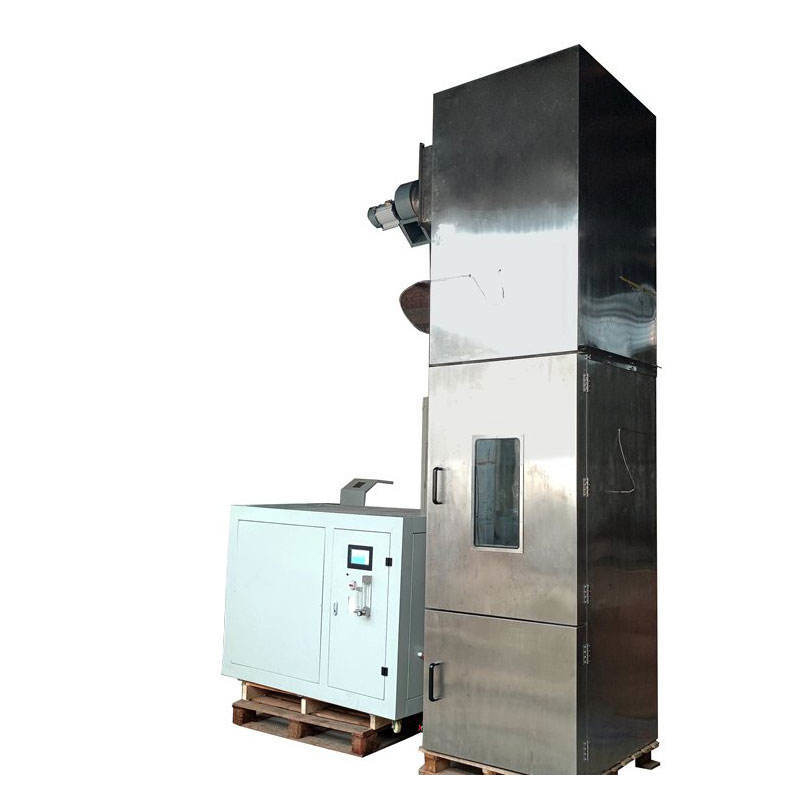

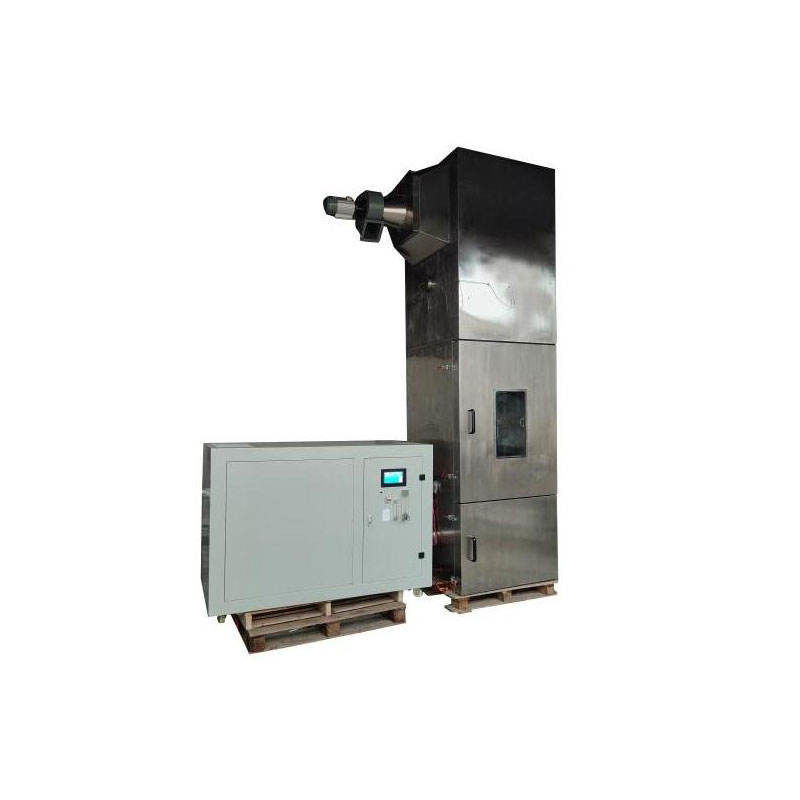

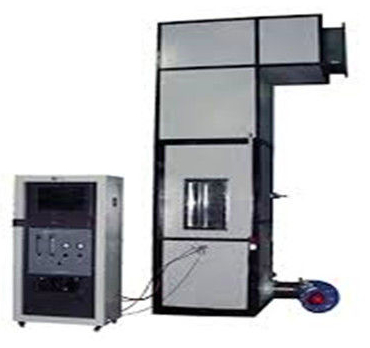

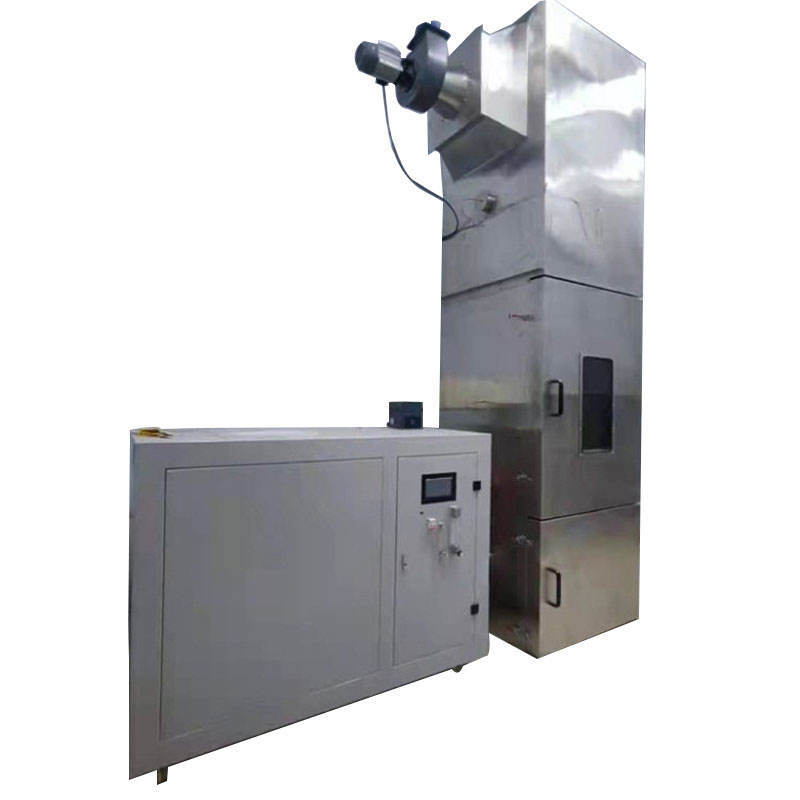

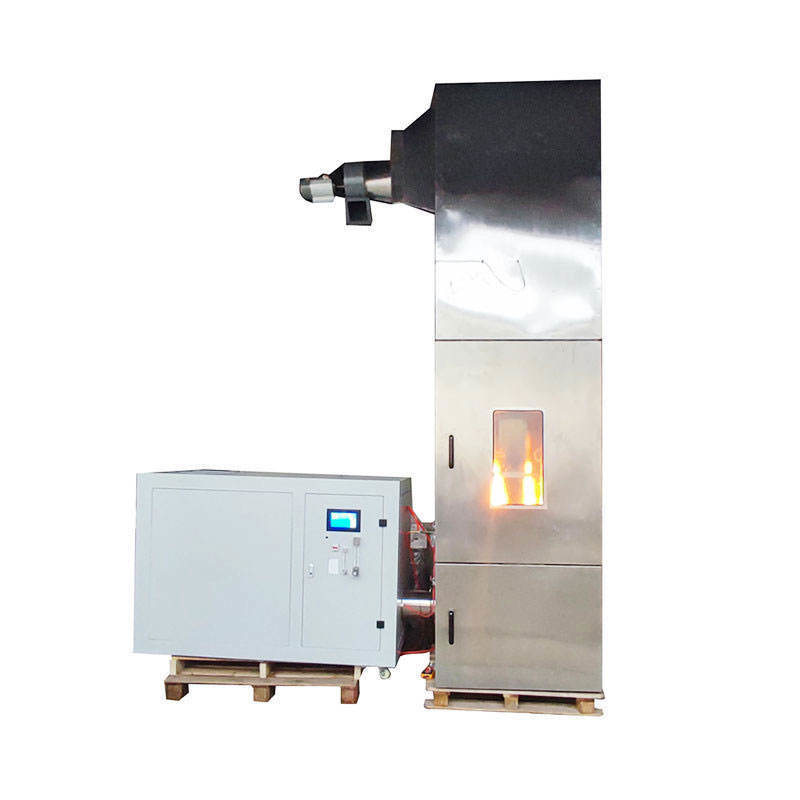

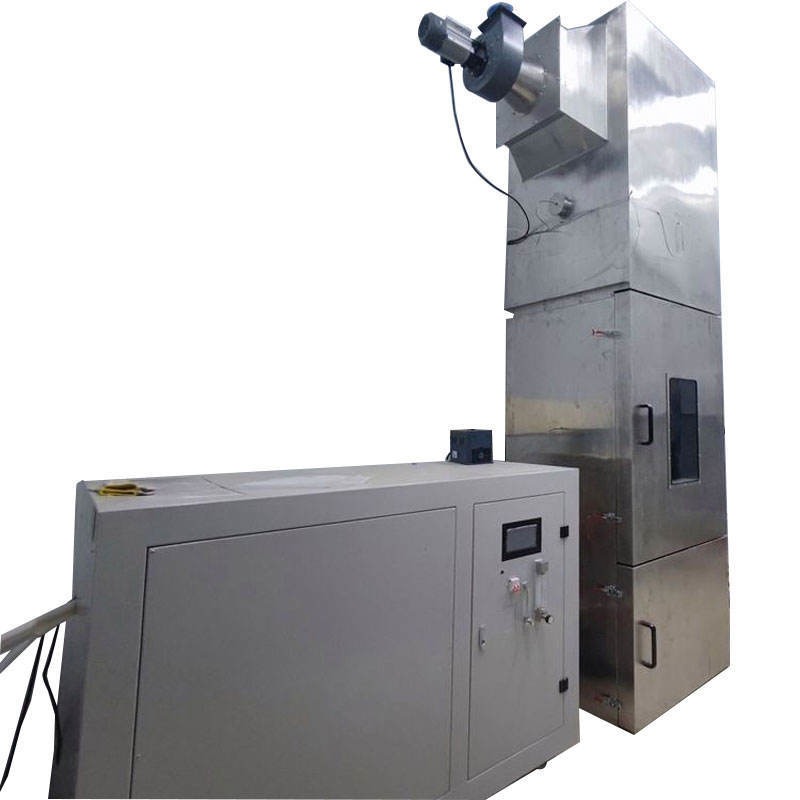

Name: YY-121 Building Materials Difficult Flammability Test Equipment
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: Yy121
Price: 25,000.00 USD
Availability: InStock

En casa. > productos > Equipo de prueba de la inflamabilidad >

YY-121 Building Materials Difficult Flammability Test Equipment

flammability test equipment for building materials

difficult flammability testing equipment

building materials flammability tester

Lugar de origen:

China.

Nombre de la marca:

YUYANG

Certificación:

Número de modelo:

Yy121

Contacta con nosotros

Pida una cita

YY-121 Building Materials Difficult Flammability Test Equipment

Detalles del producto

Medidor de flujo:

metano: 5 ~ 45L/min ajustable, aire: 3 ~ 30L/min ajustable, nivel de precisión: 2.5 Grado

Fuente de alimentación:

380V AC 50Hz usando gas: metano (pureza superior al 95%)

Par termoeléctrico:

Diámetro de 3.0 mm y termopar blindado de 1.5 mm

Diámetro de la boquilla del quemador:

3.5 mm, Dimensiones: 200 x 200 (mm) desde la parte inferior de 1000 mm

Fuente de gas:

> 95% de gas de propano; （El usuario debe mantenerse a sí mismo）

Presión de gas:

10kpa~50kpa

Resaltar:

flammability test equipment for building materials

difficult flammability testing equipment

building materials flammability tester

Condiciones de pago y envío

Cantidad de orden mínima

Establecer/conjuntos

Precio

pending

Tiempo de entrega

Condiciones de pago

L/C, T/T

Capacidad de la fuente

Productos relacionados

Building Materials Ignitability Flammability Tester for Single Flame Source Test

Obtenga el mejor precio

Fire Testing Machine, Used for Building Materials, Surface Burning Characteristics Testing Equipment

Obtenga el mejor precio

YY-121 Building Materials Difficult Flammability Test Equipment

Obtenga el mejor precio

El video

Cabina de seguridad biológica Clase II A2 con 780 mm de profundidad

Obtenga el mejor precio

Contacta con nosotros

86-769-26622869

Contacta ahora

Descripción del producto

YY-121 Building Materials Difficult Flammability Test Equipment

The YY-121 Building Materials Difficult Flammability Test Apparatus is designed for flame retardant performance testing of building materials. This computer-controlled equipment offers high automation for accurate fire resistance performance evaluation.

Compliance Standards

GB/T 8625 Test method of difficult-flammability for building materials
DIN 4102-15 Fire behavior of building materials and elements Brandschach

Key Features

Complete burning shaft furnace system including combustion chamber, burner, specimen support, air current stabilizer, and flue
Computer-controlled operation for precise furnace temperature and pressure management
High degree of automation for consistent test results

Working Principle

The testing process begins with four conditioned specimens vertically fixed on the test bracket, forming a vertical square flue. The specimens are positioned at (250±2) mm intervals. A uniform airflow is created in the combustion chamber through a 200mm diameter pipeline, maintaining a constant rate of (10±1) m³/min at controlled temperature.

Gas flow is adjusted to (35±0.5) L/min and air flow to (17.5±0.2) L/min before automatic ignition. The 10-minute test concludes when either the average flue gas temperature exceeds 200°C across five thermocouples or the maximum measured value surpasses 200°C.

Technical Parameters

Parameter	Specification
Power supply	380V AC 50HZ
Gas requirement	Methane (purity > 95%)
Flow meter range	Methane: 5-45L/min, Air: 3-30L/min (2.5 grade precision)
Specimen size	190 x 1000mm (four specimens per test, thickness ≤80mm)
Thermocouple	3.0mm diameter and 1.5mm armored thermocouple
Burner specifications	Nozzle diameter: 3.5mm, dimensions: 200 x 200mm (positioned 1000mm from bottom)
Combustion furnace dimensions	1020 x 1020 x 3930mm (external), 800 x 800 x 2000mm (internal)
Weight	1 ton
