Name: Building Materials Ignitability Flammability Tester for Single Flame Source Test
Brand: DONGGUAN YUYANG INSTRUMENT CO., LTD
SKU: Yy510
Price: 25,000.00 USD
Availability: InStock

En casa. > productos > Equipo de prueba de la inflamabilidad >

Building Materials Ignitability Flammability Tester for Single Flame Source Test

flammability tester for building materials

single flame source flammability tester

building materials ignitability testing equipment

Lugar de origen:

China.

Nombre de la marca:

YUYANG

Certificación:

Número de modelo:

Yy510

Contacta con nosotros

Pida una cita

Building Materials Ignitability Flammability Tester for Single Flame Source Test

Detalles del producto

Velocidad del aire de combustión:

0.7m/s solamente en la condición de la hornilla que quema y de la capilla del proyecto abierta

Fuente de alimentación:

220 V CA ± 10 %, 50 Hz

Horno de túnel de prueba:

3. Longitud de 7.62m, sección transversal de extremo abierto 0.45m * 0.3m, Firebrick Max Temperatura

Ángulo del quemador:

45 °

Fuente de gas:

> 95% de gas de propano; （El usuario debe mantenerse a sí mismo）

Presión de gas:

10kpa~50kpa

Resaltar:

flammability tester for building materials

single flame source flammability tester

building materials ignitability testing equipment

Condiciones de pago y envío

Cantidad de orden mínima

Establecer/conjuntos

Precio

pending

Tiempo de entrega

Condiciones de pago

L/C, T/T

Capacidad de la fuente

Productos relacionados

Building Materials Ignitability Flammability Tester for Single Flame Source Test

Obtenga el mejor precio

Fire Testing Machine, Used for Building Materials, Surface Burning Characteristics Testing Equipment

Obtenga el mejor precio

YY-121 Building Materials Difficult Flammability Test Equipment

Obtenga el mejor precio

El video

Cabina de seguridad biológica Clase II A2 con 780 mm de profundidad

Obtenga el mejor precio

Contacta con nosotros

86-769-26622869

Contacta ahora

Descripción del producto

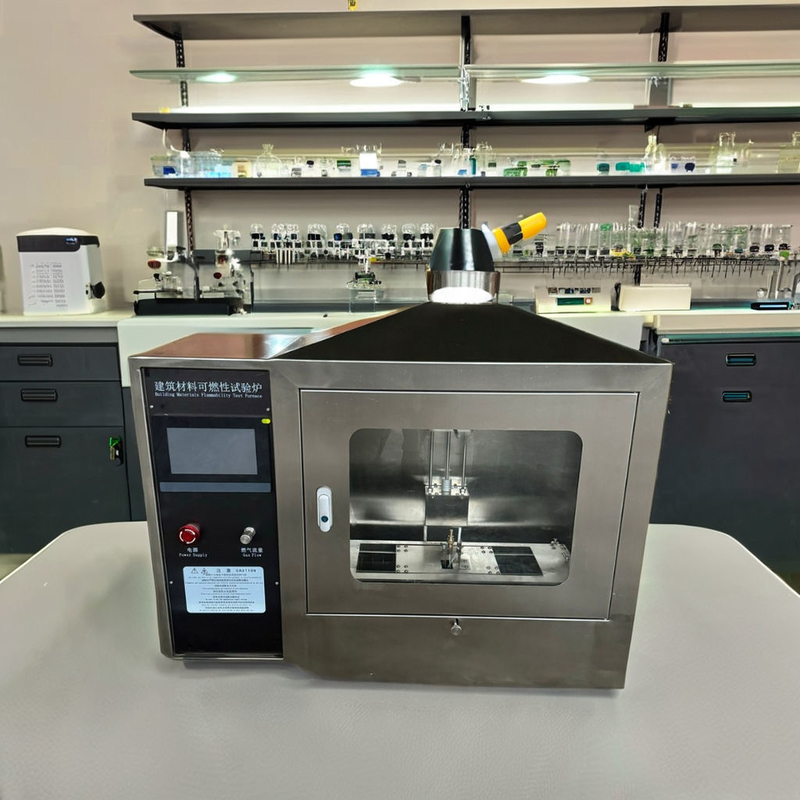

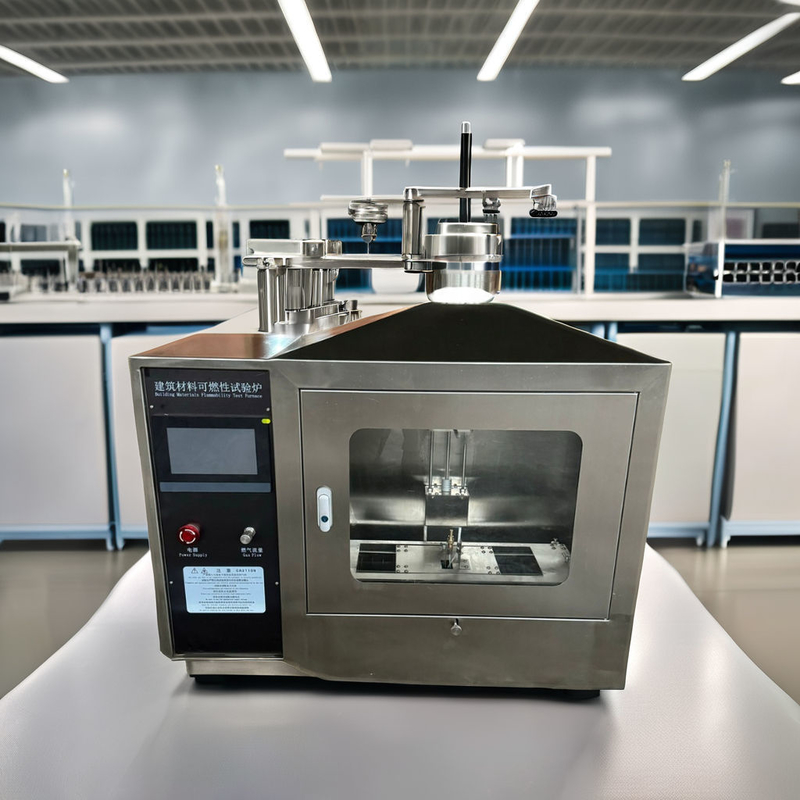

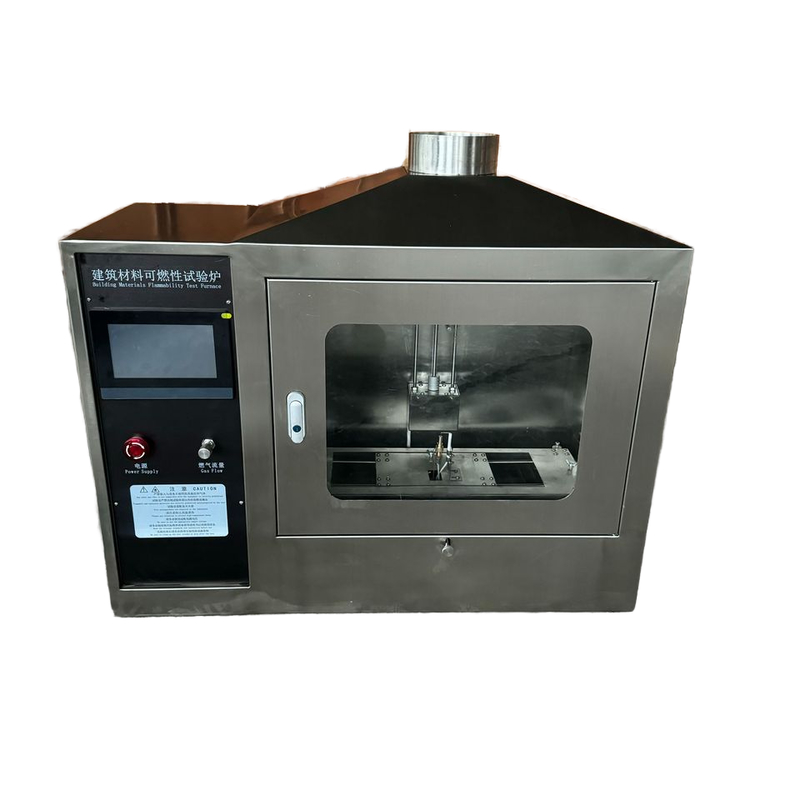

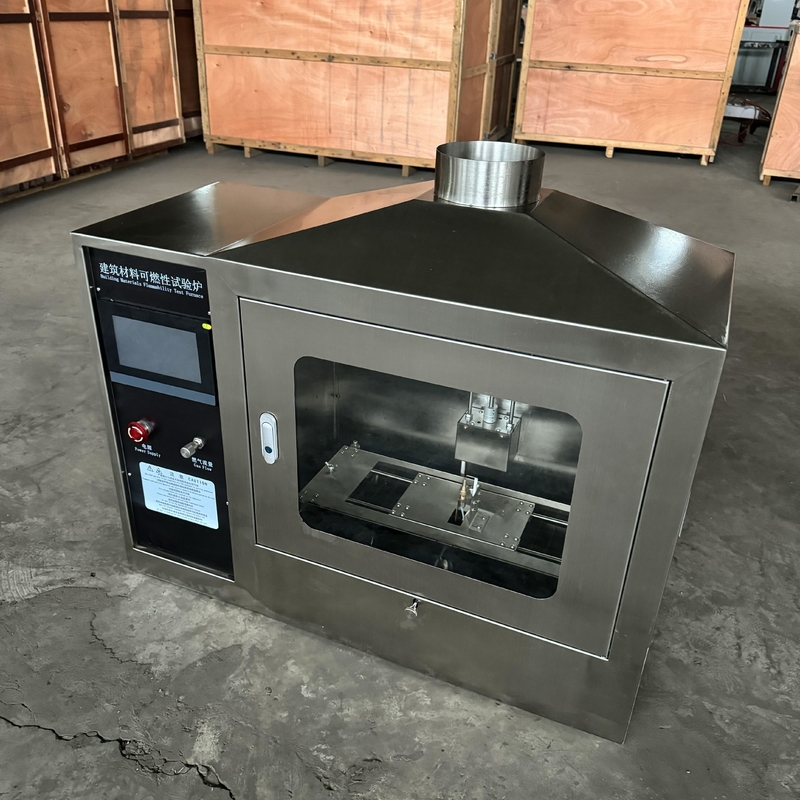

Building Materials Ignitability Flammability Tester for Single Flame Source Test

Ignitability test, also called single-flame source test. Test apparatus corresponds to standard EN ISO 11925-2. Test results of the building structure can be classified according to standard 13501-1.

The dimensions of the test specimens shall be (250) mm long by (90) mm wide.

45°-tilted burner is advanced horizontally until the flame (length 20 mm) reaches the pre-set contact point with the test specimen. Tests may need to be conducted to either surface exposure or edge exposure, or both. The flame application time is 15 or 30 seconds as required by sponsor.

During the test following is recorded: whether ignition occurs; whether the flame tip reaches 150 mm above the flame application point, and the time at which this occurs; whether ignition of the filter paper occurs; observations of physical behavior of the test specimen.

Specifications

This apparatus made up of two parts: burning chamber and control device.
Power supply: AC220V±10%,50Hz
Burner: diameter 0.17mm burner with regulator; four ￠4mm air suction inlet
Gas source: >95% propane gas (user should provide for themselves)
Gas pressure: 10kpa~50kpa
Flue air velocity: 0.7m/s only on condition of burner burning and draught hood open
Time adjustment of continuous flame: 0 ~ 99minutes99seconds
Time adjustment of afterflame: 0 ~ 99minutes99seconds
Timer accuracy: ≤1s/h
Anemometer: hot wire, accuracy ±0.1m/s, for measuring the airflow velocity in the upper outlet of the combustion chamber
Burner angle: 45°
Material: stainless steel
Observing window: two big viewing windows on the front and right side
Whole set: control device, burning chamber, burner, magnetic valve, flame lighter, signal control line and specimen holder
Equipped with a digital anemometer/thermometer and a stopwatch for simple but accurate measurement of the flow, temperature and time

Standards

GB/T8626-2007 Test Method of Flammability for Building Materials
EN ISO 11925-2:2010-Reaction to fire tests- Ignitability of building products subjected to direct impingement of flame-Part 2: Single-flame source test

Specimen Holder

Packing List

NO.	Name	Quantity	Packing Mode
1	Collector	1
2	Specimen holder	2
3	Template	2
4	Burner spacer	2	5mm-16mm
5	Flame-height measuring device	1
6	Igniter	1
7	Aluminum foil paper	1
8	Filter Paper	1
9	Anemometer	1
10	Instruction Manual	1
11	Quality Assurance	1
12	Product Certificate	1
13	Warranty Card	1
